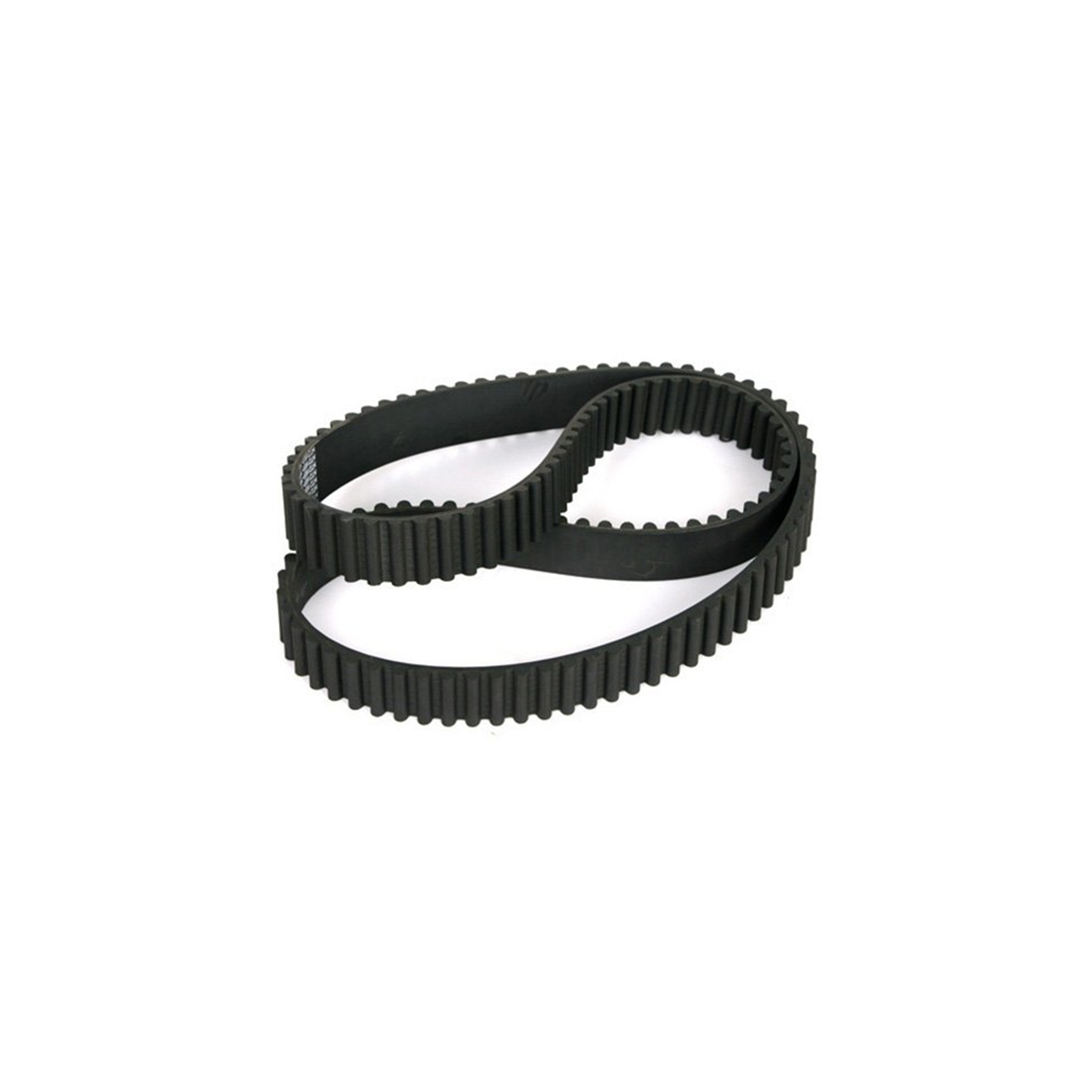

267-3M-09 HTD Single Sided Toothed Timing Belt 267mm Long 9mm Wide 89 Teeth

Availability: In stock
Product SKU
267-3M-09
£7.19 £5.99


HTD belts have a curved tooth profile providing a positive drive between the belt teeth and the pulley grooves. The Belt is constructed of a flexible, durable chloroprene polymer which encapsulates the helically wound glass fibre tensile members. This gives the belt a high tensile strength and excellent fatigue life with virtually no stretch. The belts teeth are protected by a low friction woven nylon which protects the tooth surface from wear and aids in quiet efficient running.

Supplied in one of the following high quality brands: Dunlop, Challenge, Medway.

  • Belt Width: 9mm

  • Belt Length: 267mm

  • Pitch: 3mm

  • Number of Teeth: 89

  • Temperature Range: -25°C - +100°C

More Information
Hazardous ItemNo
