FT1 Imperial Thrust Bearing 1 X 1-5/8 X 3/8 inch

Availability: In stock
Product SKU
FT 1
£16.79 £13.99

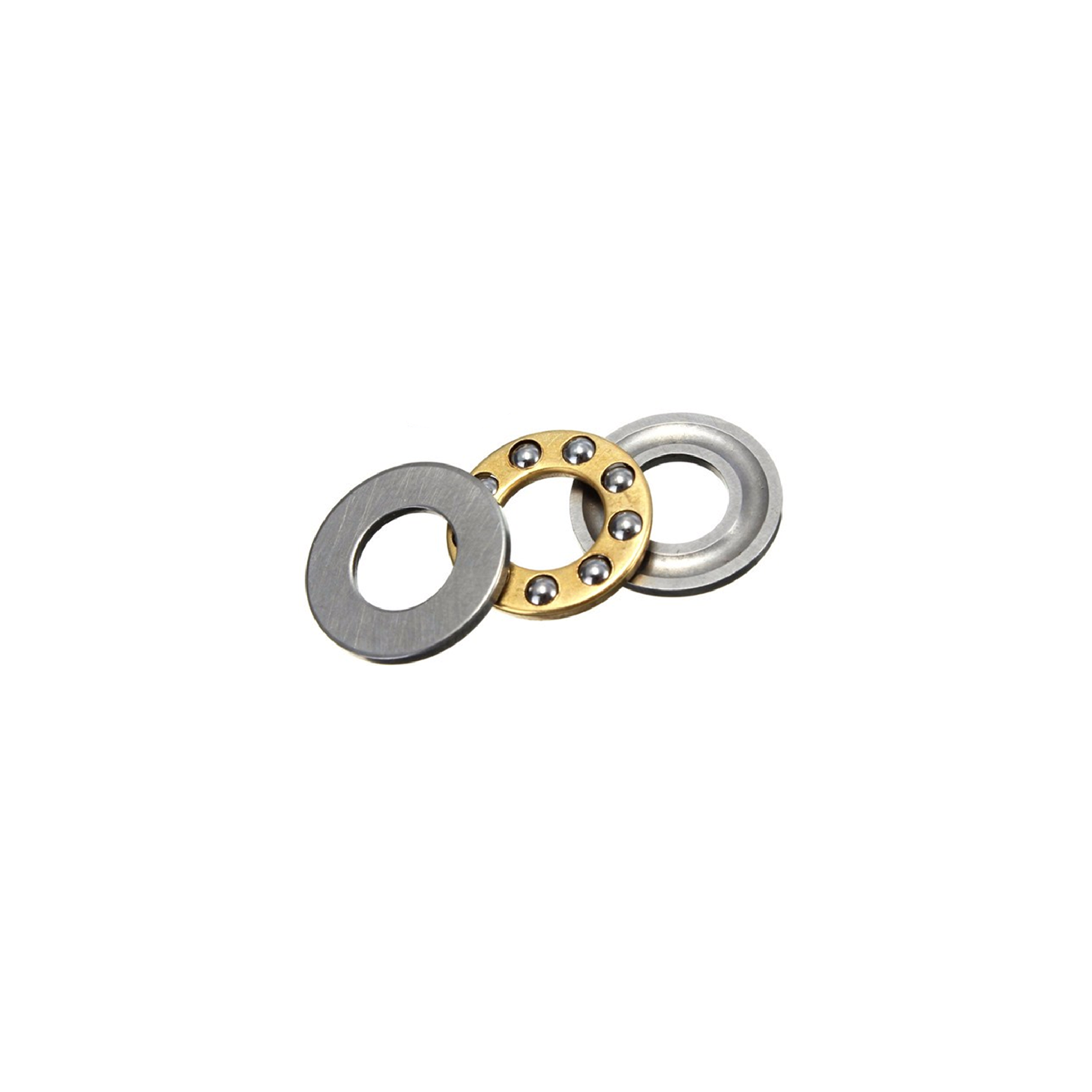

The dimensions shown are in order of internal x external x width. These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.

  • Inside Diameter: 25.4mm = 1 inch

  • Outside Diameter: 41.28mm = 1.625 (1-5/8) inch

  • Width: 9.53mm = 0.375 (3/8) inch

More Information
Hazardous ItemNo
