FT3/8 Imperial Thrust Bearing 3/8 X 13/16 X 1/4 inch

Availability: In stock
Product SKU
FT 3/8
£8.39 £6.99

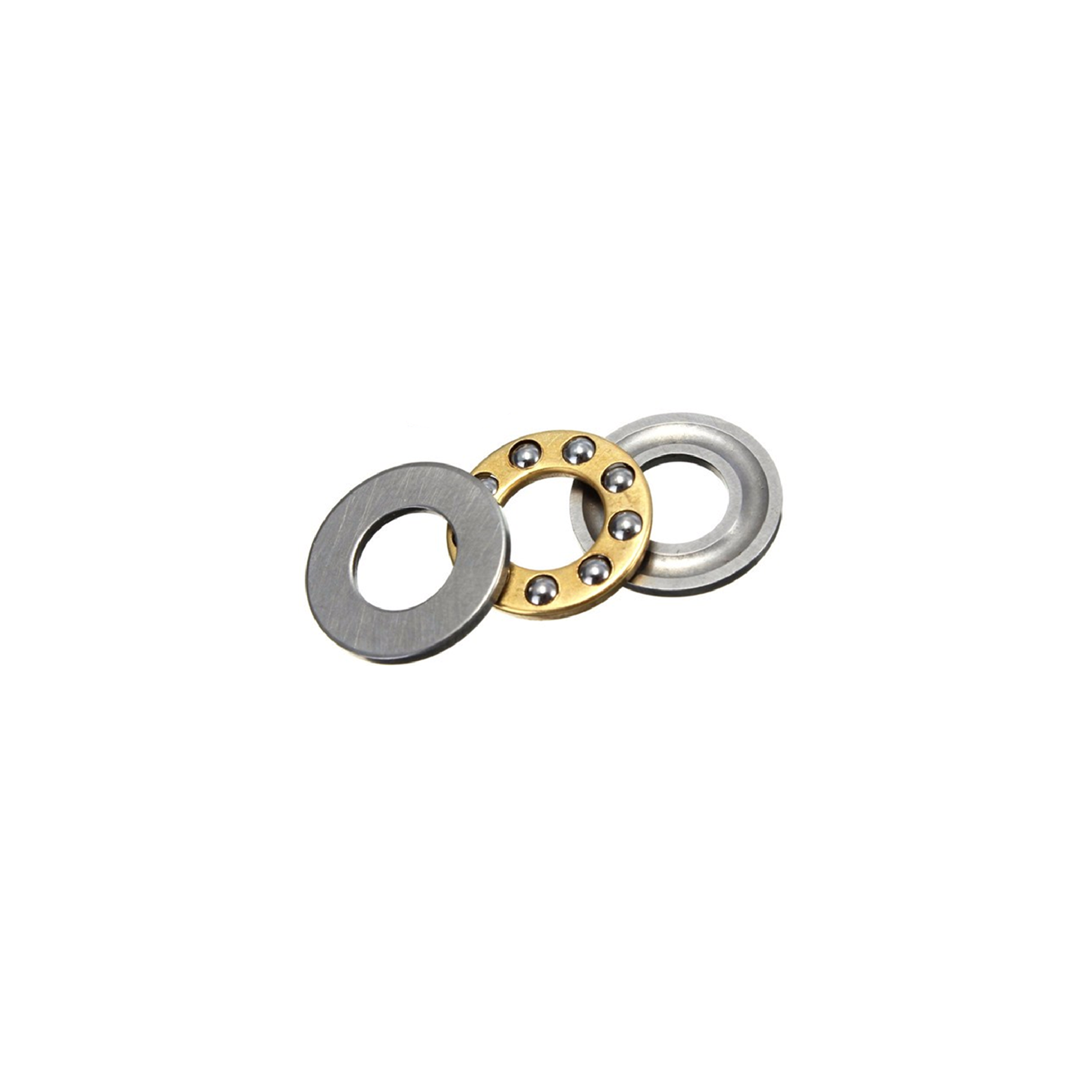

The dimensions shown are in order of internal x external x width. These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.

  • Inside Diameter: 9.53mm = 0.375 (3/8) inch

  • Outside Diameter: 20.64mm = 0.813 (13/16) inch

  • Width: 6.35mm = 0.25 (1/4) inch

More Information
Hazardous ItemNo
