FT7/8 Imperial Thrust Bearing 7/8 X 1-1/2 X 3/8 inch

Availability: In stock
Product SKU
FT 7/8
£9.59 £7.99

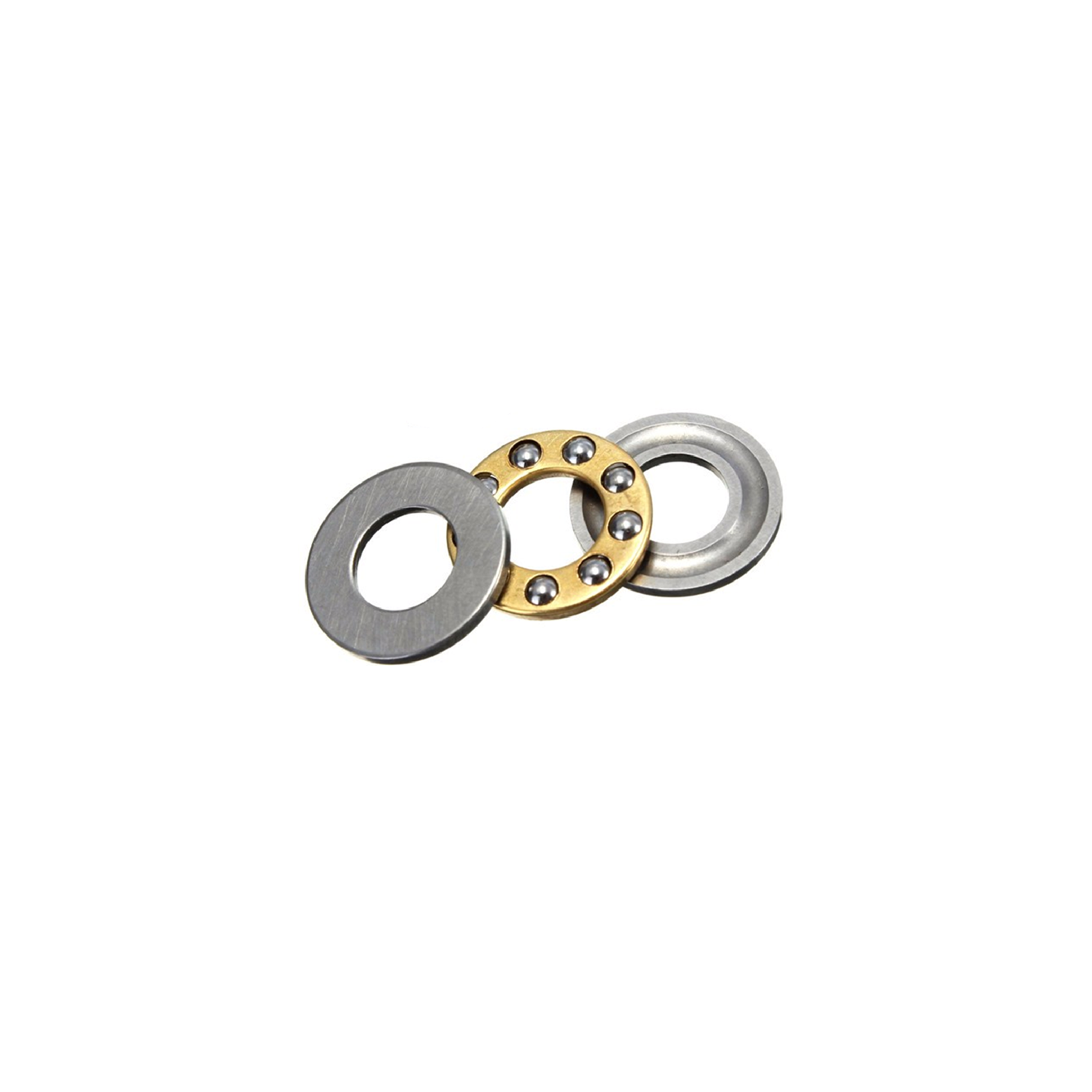

The dimensions shown are in order of internal x external x width. These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.

  • Inside Diameter: 22.23mm = 0.875 (7/8) inch

  • Outside Diameter: 38.1mm = 1.5 (1-1/2) inch

  • Width: 9.53mm = 0.375 (3/8) inch

More Information
Hazardous ItemNo
