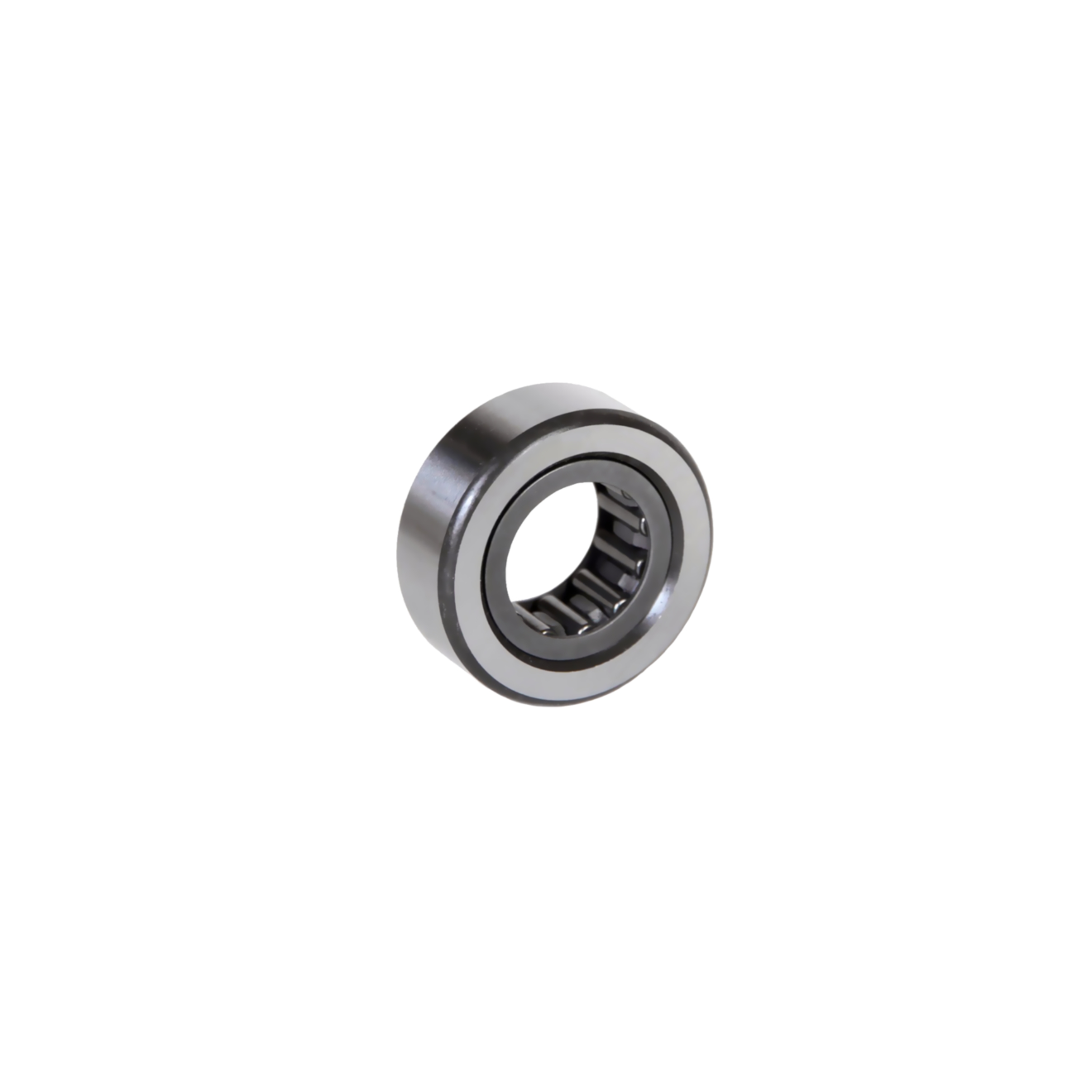

RSTO25 Support Needle Roller Bearing Without Inner Ring 30mm X 52mm X 15.8mm

Availability: In stock
Product SKU
RSTO25
£21.59 £17.99


The dimensions shown are in order of internal x external x width. These style of bearings do not have an inner ring. They are particularly compact but require a hardened and ground raceway on the shaft or stud. The outer ring and the needle roller and cage assembly can be fitted independently of each other, as it is not self-retaining.

  • Inside Diameter: 30mm

  • Outside Diameter: 52mm

  • Width: 15.8mm

More Information
Hazardous ItemNo
Inside Diameter30mm
Outside Diameter52mm
Width15.8mm
BrandBudget - Good Quality
Dynamic load16500 N
Static Load22800 N
Max Speed1800 rpm
